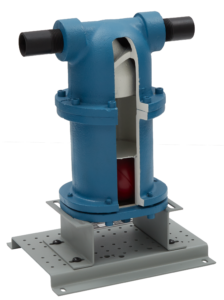

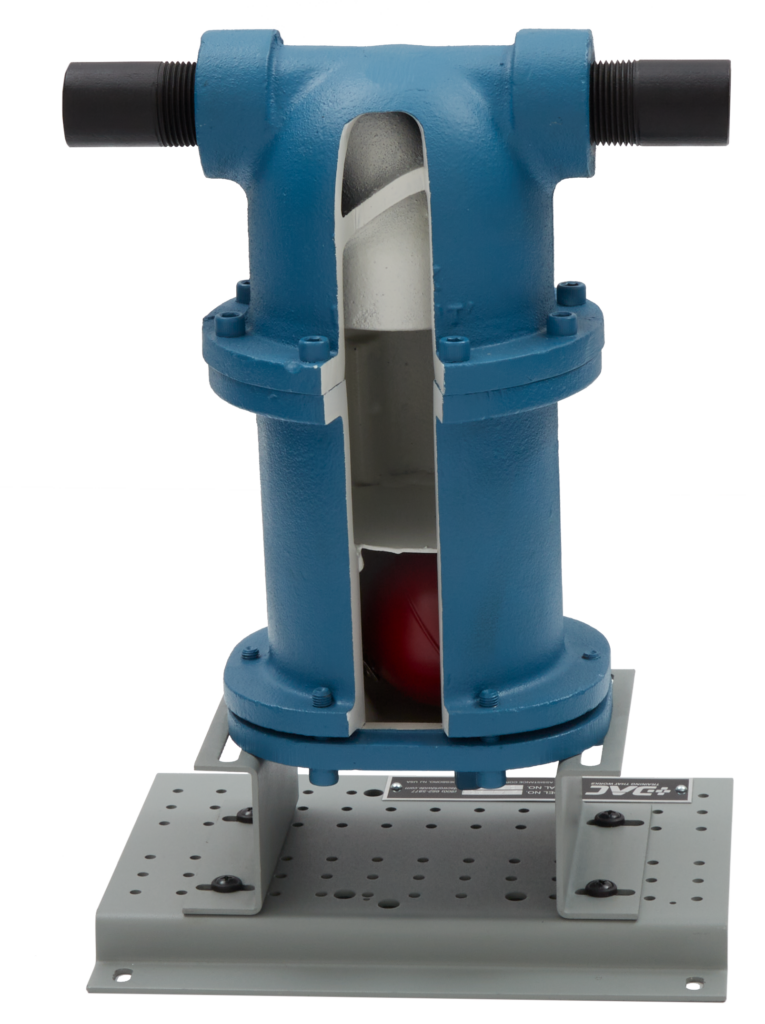

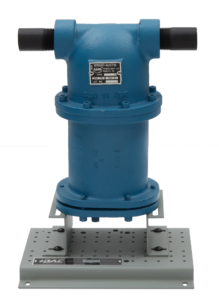

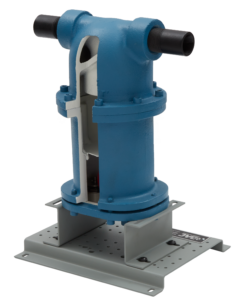

Centrifugal Moisture Separator Cutaway
Model Number: 274-201
A sectioned industrial separator that reveals internal geometry for classroom and lab training.
Overview
DAC Worldwide’s Centrifugal Moisture Separator Cutaway (274-201) is a sectioned industrial centrifugal-type moisture separator that allows for effective and convenient classroom training in the design, operating principles, and construction geometry of common industrial moisture separators. These devices are commonly used to remove liquid from a gas, air, or steam stream.
The cutaway is carefully sectioned, exposing all primary features, including the integral trap, taps, inlet defusing geometry, and vortex containment plate. The complete geometry of this fundamental piece of equipment is exposed, facilitating a better understanding of its operating principles and purpose in industrial applications.
Often used within compressed air, compressed gas, and steam lines, the device protects expensive downstream equipment, such as steam turbines and compressors. Through careful sectioning, the complete internal configuration of the separator can be seen, while also allowing for disassembly for more complete inspection. All primary features have been retained.
Features
- Sectioned actual cast-iron industrial moisture separator
- Exposes the integral trap, taps, inlet defusing geometry, and vortex containment plate
- Reveals complete internal geometry for better understanding of operating principles
- Allows disassembly for more complete inspection
- Powder-coated internal and exterior surfaces for long-term corrosion and rust resistance
- Exterior surfaces finished with a high-durability urethane coating
- 13-gauge formed-steel, powder-coated mounting stand with component attachment brackets and representative pipe samples
- Provision for mounting on related DAC Worldwide bench, workstation, and display products
- Original equipment maintenance manual included
- Packaged for shipment via courier or parcel service
Specifications
- Product dimensions (L x W x H): 8.5" x 10" x 15" (215 x 250 x 400 mm)
- Approximate weight: 25 lbs. (11.5 kg)
- Shipping dimensions (L x W x H): 15" x 22" x 24" (380 x 550 x 600 mm)
- Approximate shipping weight: 45 lbs. (20.5 kg)
Topics Covered
- Design of centrifugal-type moisture separators
- Operating principles of industrial moisture separators
- Construction geometry of common industrial moisture separators
- Removal of liquid from gas, air, or steam streams
- Identification of separator features including the integral trap, taps, inlet defusing geometry, and vortex containment plate
- Role of moisture separators in protecting downstream equipment
- Internal configuration inspection through cutaway study and disassembly
Hands-On Training
This trainer uses an actual industrial centrifugal-type moisture separator that has been carefully sectioned to expose all primary internal features. Learners can inspect the complete geometry of the device and disassemble it for more complete examination, supporting practical understanding of separator construction and operation.
Curriculum
Provides effective classroom training in the design, operating principles, and construction geometry of common industrial moisture separators used to remove liquid from gas, air, or steam streams.
Options & Accessories
- Recommended #902V Mobile Display Stand
Add On Products
Items Included
- Sectioned cast-iron centrifugal moisture separator cutaway
- 13-gauge, formed-steel, powder-coated mounting stand
- Component attachment brackets
- Representative pipe samples
- Original equipment maintenance manual
