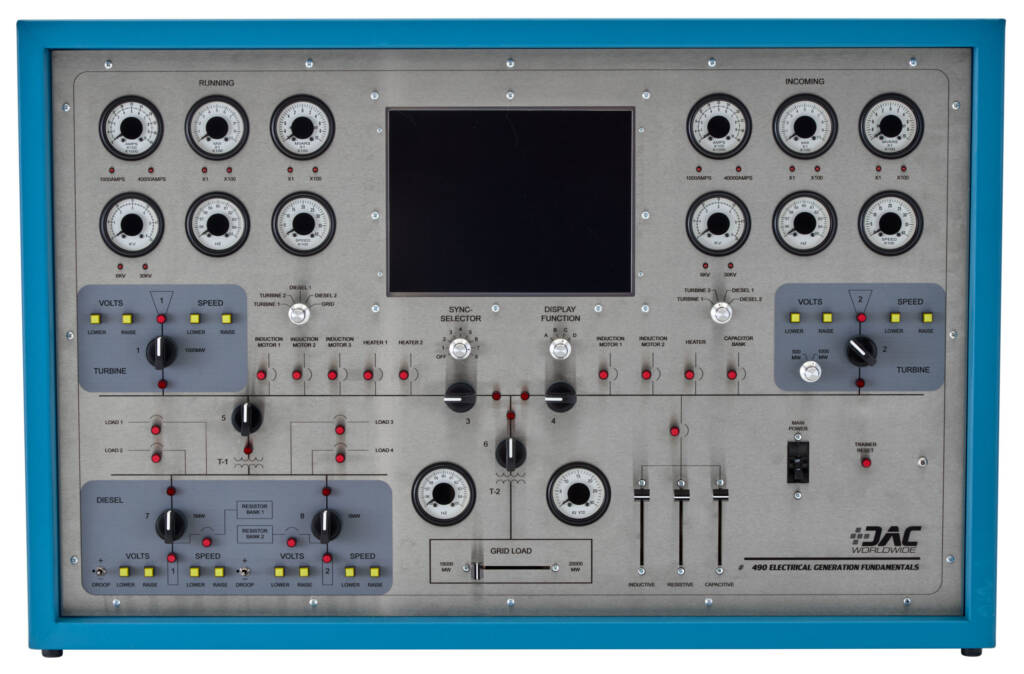

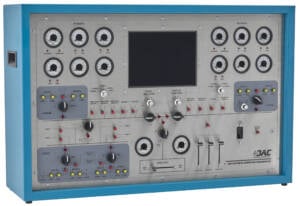

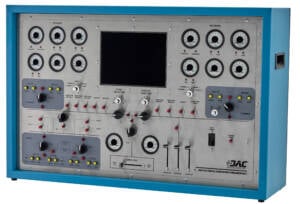

Electrical Generation Fundamentals Training System
Model Number: 490-000
A realistic power generation simulator for teaching generator operation, grid interaction, and load sharing.
Overview
Industrial facilities know how important electrical skills are to ensuring that things run smoothly and safely. What many people don’t know, however, is how diverse electrical skills can be. While basic electrical skills, such as wiring a circuit or troubleshooting a transformer, are extremely valuable and quite common, some facilities require specialized advanced electrical skills, such as those relating to power generation and managing multiple power plants on an electrical grid.
DAC Worldwide’s Electrical Generation Fundamentals Training System (490-000) represents a true simulator depicting multiple power plants on a grid. The unit basically acts as the control center for a generating station and simulates four separate generating units. The system demonstrates the principles of generator operation and represents the relationships that an operator must master in order to confidently operate generators.
Practice in paralleling machines of various sizes is easily accomplished without tying up the plant simulator. The synchroscope display includes a phase angle display, representing the phase difference between running and incoming.
A graphic representation of how load is shared, by two machines of various sizes, is shown by a house curve. The relationship between real load and reactive load is displayed by meters and by a pictorial diagram of the power triangle on the graphic display. Inductive, resistive, and capacitive loads can be turned on and off reinforcing the effects of reactive load and demonstrating how power factor can be changed.
Features
- Internal computer with analog and digital I/O
- Realistic analog input controls, analog meters, and digital LCD screen outputs
- Analog meters for amps, megawatts, megavars, kilovolts, frequency, and speed
- Three-position breaker control switches
- Breaker controls interlocked with the sync-selector switch and phase angle display
- Digital output for classroom display
- Simulates four separate generating units on a grid
- Voltage and speed adjustment on all generators
- Pre-set and adjustable inductive, resistive, and capacitive grid loads
- Individual start and trip control for each prime mover
- Automatic diesel generator start on loss of all AC
- Circuit breakers with over-current trip capability
Specifications
- Model: 490-000
- System type: simulator depicting multiple power plants on a grid
- Simulated generating units: 4 separate generating units
- Control role: acts as the control center for a generating station
- Display instrumentation: analog meters for amps, megawatts, megavars, kilovolts, frequency, and speed
- Synchroscope display includes a phase angle display
- Digital output for classroom display
- Depiction of a 1000 MW turbine generator operating at 1800 RPM
- Depiction of a second turbine generator operating at either 500 MW @ 3600 RPM or 1000 MW @ 1800 RPM
- Depiction of a 5 MW diesel generator operating at 900 RPM with adjustable voltage and speed
- Depiction of a second 5 MW diesel generator operating at 900 RPM
- Depiction of a variable grid load of 18,000-20,000 MW
- Voltage and speed adjustment on all generators
- Loads: pre-set and adjustable inductive, resistive, and capacitive grid loads
- Breaker controls: realistic three-position switches interlocked with the sync-selector switch and phase angle display
- Protection: all circuit breakers allow for over-current trips
Topics Covered
- Introduction to AC machines
- AC generators
- Generator system operation
- Reactive power control
- Control and distribution of MW load
- Loss of generation and load
- Real vs. reactive load
- Paralleling operations
- Generators in parallel and load sharing
- Generator response to inductive, resistive, and capacitive loads
- Calculation of power factor
- Diesel generator auto-start and loading
Hands-On Training
- Practice paralleling machines of various sizes without tying up the plant simulator.
- Use the synchroscope and phase angle display to understand the phase difference between running and incoming machines.
- Observe load sharing between two machines using the house curve display.
- Monitor real and reactive load relationships with meters and a graphic power triangle display.
- Turn inductive, resistive, and capacitive loads on and off to reinforce reactive load effects and demonstrate changes in power factor.
- Start and trip each prime mover individually and observe automatic diesel generator start on a loss of all AC.
- Adjust voltage and speed on all generators and work with breaker controls featuring over-current trip behavior.
Curriculum
An in-depth Use/Exercise Guide provides approximately 20 hours of instruction covering AC machines, AC generators, generator system operation, reactive power control, MW load control and distribution, loss of generation and load, real versus reactive load, paralleling operations, generators in parallel and load sharing, generator response to inductive, resistive, and capacitive loads, calculation of power factor, and diesel generator auto-start and loading.
