Extended Support Frame Assembly
Model Number: 373-002E
Heavy-duty display rack with 48 inches of panel mounting area for HVAC cutaways, samples, and training displays.
Overview

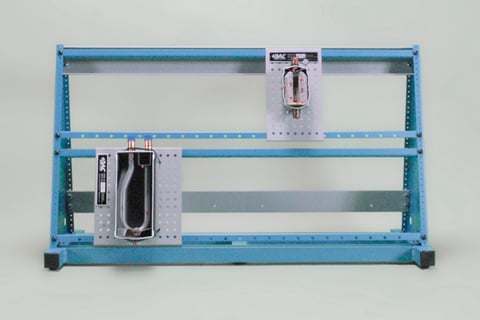

DAC Worldwide’s Extended Support Frame Assembly (373-002E) is an optional display rack for the 373-Series panel-mounted HVAC cutaways, as well as other product cutaways and equipment samples. Fabricated from 16-gauge formed-steel and powder-coated standardized components, the assembly allows for 48″ of panel mounting area. Thanks to its high-durability, powder-coated surfaces throughout, this display rack allows for rough handling and will easily provide years of trouble-free duty in the training lab or classroom.
This assembly accommodates multiple 3″, 6″, 9″, and 18″ wide display panels, for convenient display or storage after hands-on use. It also includes provisions for mounting on related workstations, display structures, and integration benches. Coupled with cutaways and sample panels of choice, this assembly will create a permanent, professionally-crafted, comprehensive training display relating to a variety of refrigeration and air-conditioning topics, allowing for both instructor use and student self-discovery.
Features
- Optional display rack for 373-Series panel-mounted HVAC cutaways and other equipment samples
- 48 in. of panel mounting area
- Accommodates 3 in., 6 in., 9 in., and 18 in. wide display panels
- 16-gauge formed-steel construction with powder-coated surfaces
- Welded tubular aluminum base frame with anti-skid rubber feet
- Provisions for mounting on related workstations, display structures, and integration benches
- Built for repeated use and rough handling in labs and classrooms
Specifications
- Model: 373-002E
- Panel mounting area: 48 in.
- Compatible panel widths: 3 in., 6 in., 9 in., and 18 in.
- Construction: 16-gauge formed-steel support frame with powder-coated surfaces
- Base frame: 1/8 in.-wall welded tubular aluminum with anti-skid rubber feet
- Product dimensions (L x W x H): 14 in. x 39 in. x 20 in. (356 x 990 x 510 mm)
- Product weight: 18 lbs. (8 kg)
- Shipping dimensions (L x W x H): 17.5 in. x 42 in. x 26 in. (445 x 1068 x 660 mm)
- Shipping weight: 30 lbs. (14 kg)
Hands-On Training
The frame is designed for repeated lab and classroom use, allowing convenient display and storage of multiple panel sizes after hands-on activities. Its durable construction supports rough handling while keeping training cutaways and samples organized and accessible.
Curriculum
Coupled with compatible cutaways and sample panels, this assembly creates a permanent, professionally crafted training display for refrigeration and air-conditioning instruction, supporting both instructor-led demonstration and student self-discovery.
Add On Products
Items Included
- 1/8 in.-wall, welded tubular aluminum support base frame with anti-skid rubber feet
- 4-piece, 16-gauge formed-steel support frame including lateral supports, spanning top cap, and universal tapered end frames
- 16-gauge formed-steel panel support rail set
- Two 1/4 in. aluminum support and stabilization handles
- Mounting provisions for related workstations, display structures, and integration benches
- Crating for shipment via courier or motor freight
Requirements
- Compatible 373-Series panel-mounted HVAC cutaways or other display panels/equipment samples are required to create a complete training display.
