Pinch Valve Cutaway
Model Number: 264P
A real industrial pinch valve with exposed, color-coded internals for hands-on classroom maintenance training.
Overview
DAC Worldwide’s Pinch Valve Cutaway (264P) is a large and unique valve sample that allows for convenient classroom training in the operation, construction, and maintenance of an industrial pinch valve as used in many industries.
These full-bore/fully-ported industrial valves are known for their low maintenance costs, smooth flow characteristics, seal-less design, and adaptability to a range of abrasive and corrosive media. As a result, they’re often a popular choice for many heavy industry applications. While small pinch valves are used widely in medical equipment and pharmaceutical applications, larger pinch valves are commonly used in pulp and paper, wastewater, cement, ceramic, and glass industries.

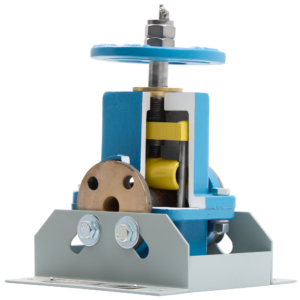

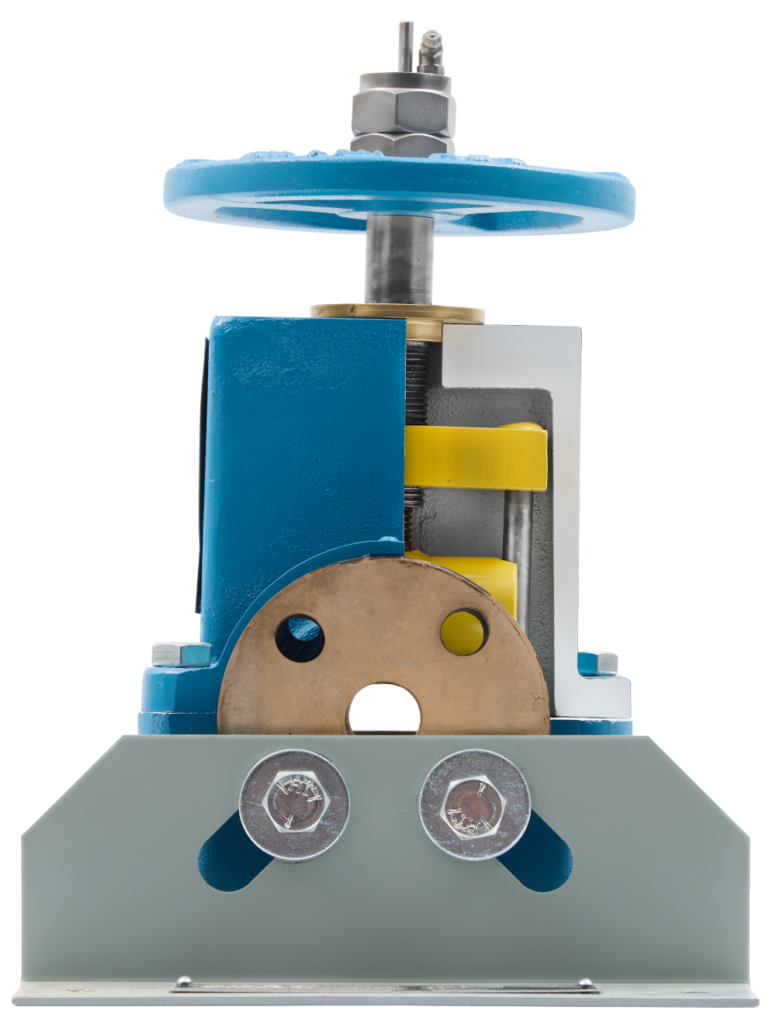

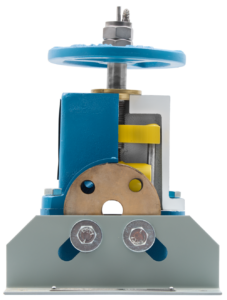

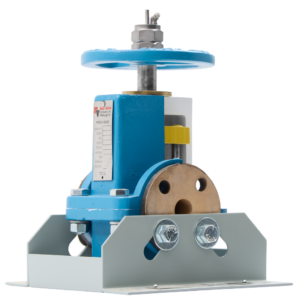

Through carefully-planned sectioning and color-coding, the complete internal configuration of the valve is exposed and showcased. Functional features and hardware locations have been retained, allowing for hands-on training in maintenance. Strategic sectioning unveils important features, such as the elastomeric sleeve, pinch-bars, and the complete linear pinching mechanism.
Features
- Sectioning of actual industrial valve hardware
- High-durability urethane coating with powder-coated interior surfaces
- Color-coded valve body, internal process surfaces, seat, and closure device
- Replacement plated hardware where necessary
- All functioning internal components shown
- Welded, formed-steel, powder-coated mounting stand
- Provision for tabletop mounting or mounting on related DAC Worldwide benches, workstations, and storage racks
- Crated for shipment via motor freight
Specifications
- Product Dimensions (L x W x H): 15" x 9.5" x 20" (380 x 241 x 510 mm)
- Shipping Dimensions (L x W x H): 16.5" x 22" x 30" (420 x 560 x 775 mm)
Topics Covered
- Industrial pinch valve operation
- Industrial pinch valve construction
- Industrial pinch valve maintenance
- Identification of valve body, process surfaces, seat, and closure device
- Elastomeric sleeve function
- Pinch-bars and linear pinching mechanism
- Valve characteristics for abrasive and corrosive media
- Heavy-industry pinch valve applications
Hands-On Training
Carefully planned sectioning and color-coding expose the valve’s complete internal configuration while retaining functional features and hardware locations for hands-on maintenance training. Learners can examine actual industrial hardware and directly study the elastomeric sleeve, pinch-bars, and complete linear pinching mechanism.
Curriculum
Designed for classroom training in the operation, construction, and maintenance of an industrial pinch valve. Exposed internal configuration and color-coding support instruction on component identification, valve design, and maintenance concepts.
Options & Accessories
- Recommended #902V Mobile Display Stand
- #530-000 – IPT Pipe Trades Training Manual
- #530-001 – IPT Pipe Trades Handbook
- #532-002 – The Valve Primer
- #902F – Electromechanical Workstation
Add On Products
Items Included
- Pinch Valve Cutaway training sample based on actual industrial hardware
- Sectioned and color-coded valve assembly
- All functioning internal components shown
- Replacement plated hardware where necessary
- Welded, formed-steel, powder-coated mounting stand
- Crating for shipment via motor freight
