Right Angle Spiral Bevel Gear Reducer Dissectible
Model Number: 205-120
Hands-on mechanical drives training with an actual industrial spiral bevel gear reducer.
Overview

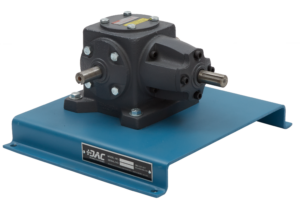

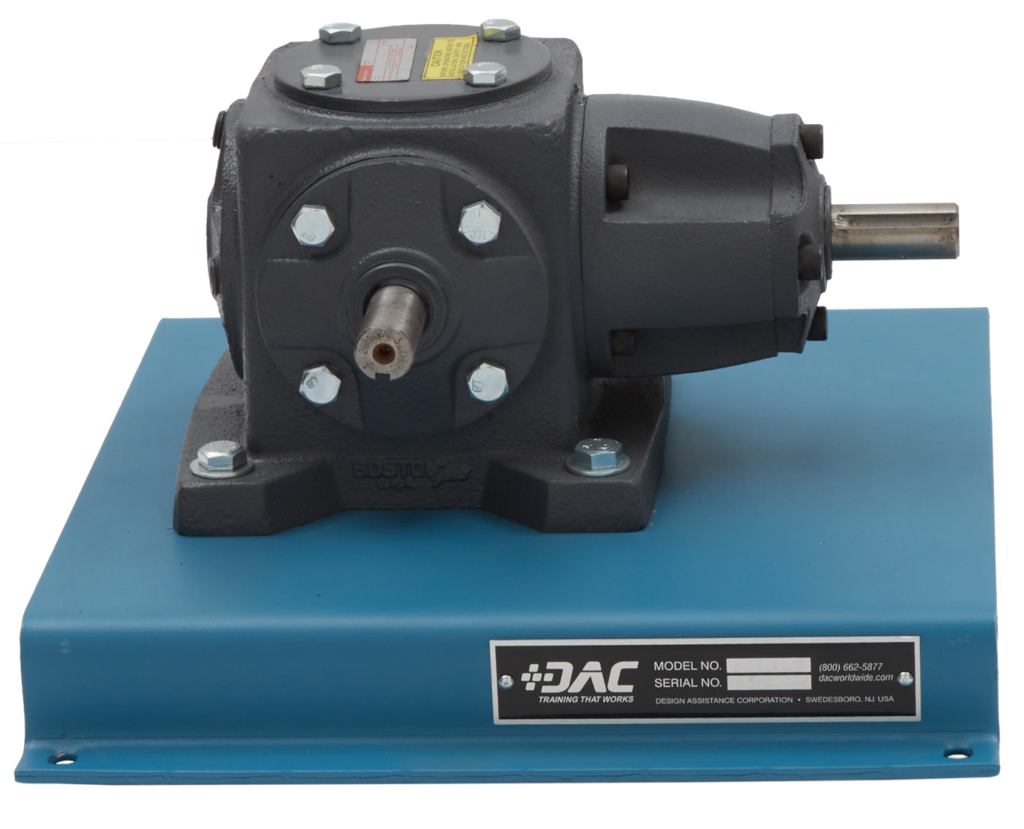

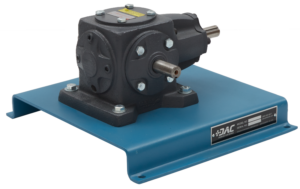

DAC Worldwide’s Right Angle Spiral Bevel Gear Reducer Dissectible (205-120) is part of an extensive series of actual industrial gear reducers for use in classroom and laboratory hands-on training related to mechanical drives. This example, which was procured as industrial surplus, has been cleaned, restored, repainted, and mounted on a modular heavy-gauge steel baseplate. The dissectible can be mounted on a related bench, workstation, and storage products, and all features have been retained.
Using a steel baseplate and industry-grade aluminum components, the equipment provides a variety of training scenarios to aide learners in becoming better prepared for the tasks they will encounter on the job. This mechanical training system includes restoration of actual industrial gear reducers. Learners will use these components to study topics such as gear trains and ratios, the role of right angle drives, the components of a spiral bevel gear, and much more.
This versatile piece of training equipment, combined with the ability to disassemble/reassemble the product, represents a complete course in this fundamental industrial technology, and is useful within industrial training programs, as well as in the educational setting.
Features
- Actual industrial spiral bevel gear reducer restored for training use
- Disassemble and reassemble for hands-on mechanical skills practice
- Formed-steel baseplate with provision for bench-top, workstation, and storage rack mounting
- High-durability urethane coating for frequent use
- Industry-grade aluminum support stand-offs
- Replacement hardware included where necessary
- Magnetic formed-steel parts container with liner
- Examples selected from well-known manufacturers for industrial relevancy
Specifications
- Product Dimensions (L x W x H): Approx. 13 in. x 24 in. x 11 in. (335 x 610 x 279 mm)
- Product Weight: 35 lbs. (16 kg)
- Shipping Dimensions (L x W x H): Approx. 15.5 in. x 34 in. x 23.5 in. (395 x 864 x 597 mm)
- Shipping Weight: 55 lbs. (25 kg)
- Mounting Provisions: Bench-top, workstation, and storage rack mounting
- Finish: High-durability urethane coating
Topics Covered
- Gear trains and ratios
- Role of right angle drives
- Components of a spiral bevel gear
- Gear type identification
- Troubleshooting mechanical complications
- Disassembly and reassembly of gear reducers
Hands-On Training
This dissectible gives learners direct experience with an actual industrial spiral bevel gear reducer that has been restored for classroom and laboratory use. By disassembling and reassembling the unit, learners can build practical mechanical skills while studying gear trains, ratios, right angle drives, and spiral bevel gear components.
The system supports hands-on practice in identifying gear types, troubleshooting complications, and working with components mounted on a durable platform suited for repeated training use.
Curriculum
Optional curriculum supplements include a Student Training Manual and the IPT Industrial Trades textbook. The Student Training Manual combines technical content and learning objectives into a single perfectly bound book, while the textbook presents clear objectives and performance standards for learners.
Options & Accessories
- Recommended #902F – Electromechanical Workstation
- #510-000 – Industrial Trades Manual (IPT)
- #510-001 – Industrial Trades Handbook (IPT)
- #205-001 – Tool Kit, Gear Maintenance
Add On Products
Items Included
- Restored actual industrial spiral bevel gear reducer
- Formed-steel baseplate with provision for bench-top, workstation, and storage rack mounting
- Aluminum support stand-offs
- Replacement hardware, where necessary
- Formed-steel magnetic parts container with liner
- Crating for shipment via motor freight or sea freight
