Four Wheel Drive Sectioned Drivetrain
Model Number: 786-02
A fully sectioned trainer for demonstrating the internal operation of a complete 4x4 drivetrain.
Overview

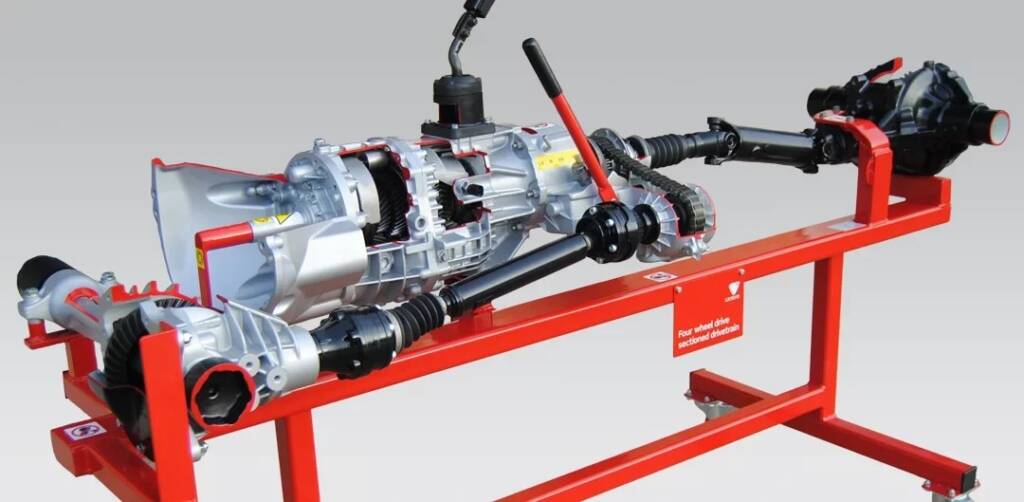

The Four Wheel Drive Sectioned Drivetrain (786-02) is a fully-sectioned trainer that allows the instructor to demonstrate the internal operation of a complete 4×4 drivetrain. Designed for group or whole-class demonstration, the trainer is mounted on a self-contained steel frame that is fitted with castors for ease of movement. This resource is supplied with a manual containing practical tasks and activities.
Specifications
- Trainer dimensions (W x D x H): 2400 x 800 x 1050 mm / 94 x 31 x 41 inches
- Packed volume: Approx. 3.72m3 / 131ft3
- Packed weight: Approx. 390kg / 855lb
- Packed dimensions (W x D x H): 2654 x 1104 x 1269 mm / 105 x 44 x 50 inches
- Demonstration modes: 4 WD, 2 WD, and 4 WD low ratios
Practical Tasks
- Internal operation of a complete 4×4 drivetrain
- 5 forward gears and reverse
- Selector forks
- Synchro rings
- Transfer case
- Planetary gears
- Mode fork
- Drive chain
- Mode indicator switch
- Operation of front and rear differentials
- Operation in 4 WD, 2 WD, and 4 WD low ratios
- Observing and recording gear ratios using the output shaft reference mark
Curriculum
This resource is supplied with a manual containing practical tasks and activities. The trainer may also be used in conjunction with optional cloud-based software that offers online interactive theory presentations, investigations, and assessments covering a wide range of supporting automotive topic areas.
Items Included
- Trainer
- Practical activity manual
