Heavy Vehicle Electrical Systems Panel Trainer
Model Number: 757-01
A fault-insertion trainer for investigating and diagnosing typical diesel vehicle electrical systems.
Overview

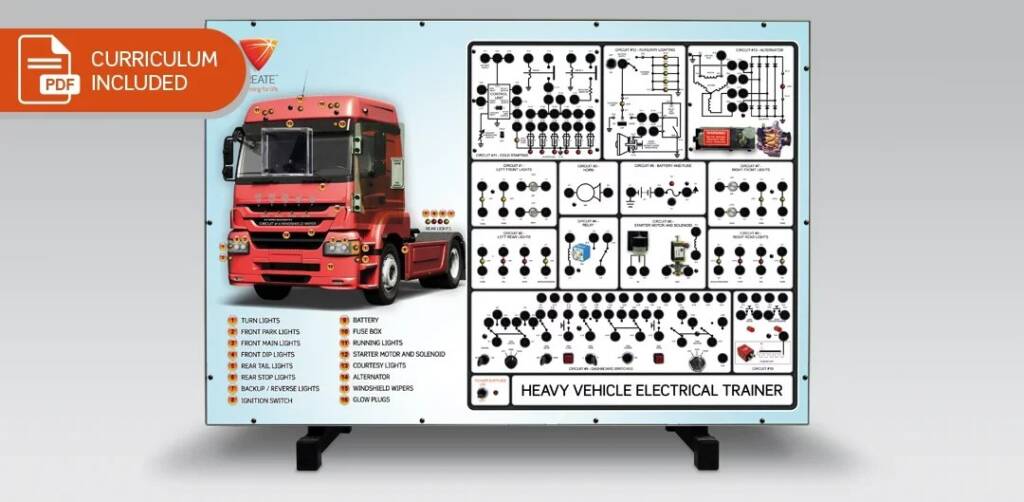

This trainer provides students and instructors with the opportunity to demonstrate, investigate and fault-find a simulation of typical diesel electrical systems. The trainer is designed to allow access to a variety of test points for vehicle electrical components, as well as provide an understanding of the overall system layout and configuration.
To facilitate the development of techniques in diagnostics and fault-finding skills, the Heavy Vehicle Electrical Systems Panel Trainer (757-01) includes a range of fault-insertion options to simulate typical real-world system malfunctions.
This trainer includes access to curriculum material including theory and practical learning tasks.
Specifications
- Trainer dimensions: 900 x 170 x 600 mm (W, D, H)
- Packed volume: Approx 0.316 m3
- Packed weight: Approx 26 kg
Practical Tasks
- Battery and fuses
- Starter and solenoid
- Horn and relays
- Park, tail and headlights
- Turn signal and hazard warning lights
- Brake and back up lights
- Auxiliary lighting
- Alternator charging systems
- Windshield wiper system
- Cold starting systems
- Troubleshooting
Curriculum
This trainer includes access to curriculum material covering theory and practical learning tasks.
It can also be used in conjunction with optional cloud-based software, interactive theory presentations, investigations, and assessments that support the practical activities carried out using this resource.
Items Included
- Trainer
- Curriculum material
- Wall mounting brackets
- Bench stands
- Accessory kit
Other Items Required
- Lab scope
- Digital multimeter
