Flat Plate Boundary Layer Model
Model Number: AF1300F
Illustrates boundary layer development, pressure distribution, and flow separation in the AF1300 Subsonic Wind Tunnel.
Overview
A flat boundary layer model to illustrate the phenomena of boundary layer development and separation. For use with the AF1300 Subsonic Wind Tunnel.

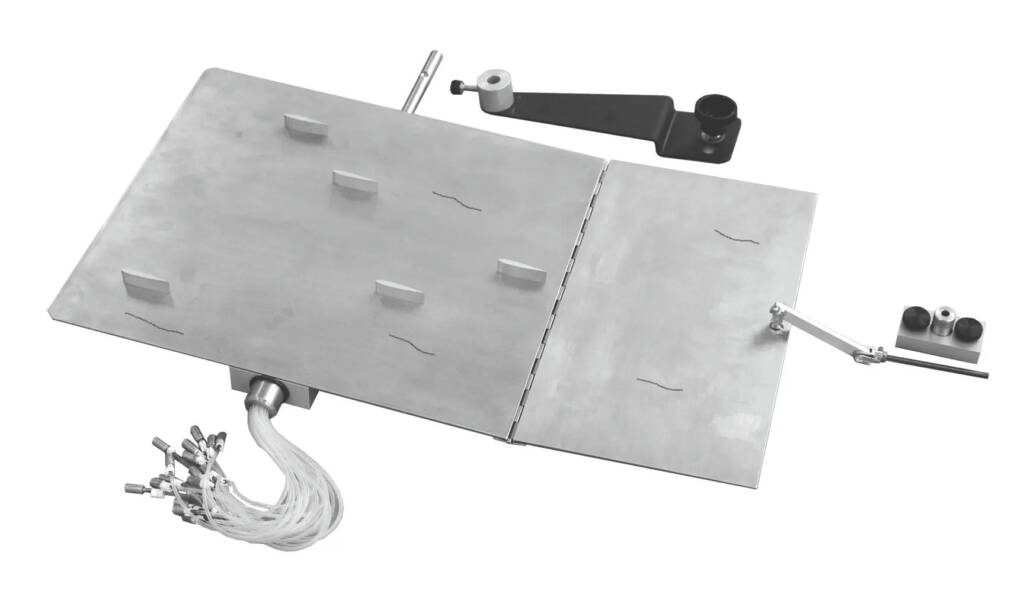

The model is a flat plate that spans the full width of the AF1300 wind tunnel working section. It has aerodynamically shaped blocks mounted across the plate at different distances from the leading edge. Each block has five tapping points at different heights along its leading edge. Each tapping connects to flexible, numbered tubing that routes outside the wind tunnel. Students can connect the tubes to other optional pressure measurement instruments.
The tapping points allow students to measure the stagnation pressure. They use this to find the velocity at different heights from the surface and at different distances from the leading edge. This allows students to find the growth of the boundary layer along the plate.
On the trailing edge of the plate is a hinged flap. Students can adjust the angles of both the plate and the flap independently. This lets them create different arrangements to control pressure distribution and the boundary layer. The surface of the plate has small ‘tufts’ to help students see the air flow around the surface of the plate.
Features
- Shows boundary layer development and separation
- Flat plate spans the full width of the AF1300 wind tunnel working section
- Aerodynamically shaped blocks mounted at different distances from the leading edge
- Five tapping points at different heights on each block
- Flexible, numbered tubing routes pressure tappings outside the wind tunnel
- Allows stagnation pressure measurement to determine velocity profiles
- Helps students measure boundary layer growth along the plate
- Hinged trailing-edge flap
- Independent adjustment of plate and flap angles
- Surface tufts visualize airflow around the plate
Specifications
- For use with the AF1300 Subsonic Wind Tunnel
- Flat plate spans the full width of the AF1300 wind tunnel working section
- Aerodynamically shaped blocks mounted across the plate at different distances from the leading edge
- Each block includes five tapping points at different heights along its leading edge
- Each tapping connects to flexible, numbered tubing routed outside the wind tunnel
- Trailing edge includes a hinged flap
- Plate angle and flap angle adjust independently
- Surface includes small tufts for airflow visualization
Learning Outcomes
- Boundary layer development
- Boundary layer separation
- Stagnation pressure measurement
- Velocity at different heights from a surface
- Velocity at different distances from the leading edge
- Boundary layer growth along a flat plate
- Pressure distribution control
- Airflow visualization around a surface
Items Included
- Flat plate boundary layer model
- Aerodynamically shaped blocks mounted across the plate
- Pressure tapping points on each block
- Flexible, numbered tubing
- Hinged trailing-edge flap
- Surface tufts for airflow visualization
Requirements
- AF1300 Subsonic Wind Tunnel
- Compatible pressure measurement instruments for the pressure tapping connections
