Digital Pressure Display
Model Number: DP1
A four-transducer display module for clear, accurate pressure measurement on TecQuipment experiments.
Overview

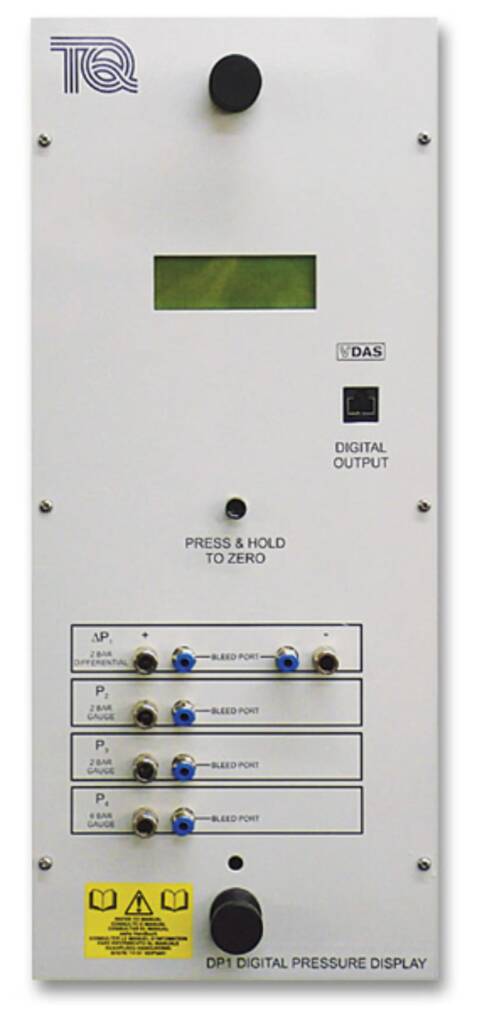

Digital pressure display module to provide clear, accurate pressure measurement when used with a variety of TecQuipment experiments. It also includes an output for connection to TecQuipment’s Versatile Data Acquisition System VDAS® (available separately). The equipment consists of four pressure transducers mounted in a robust panel. The panel mounts on the instrumentation frames of relevant TecQuipment experiments. The transducers are differently rated to show inlet, delivery and Venturi (differential) pressure. A four-line LCD display provides a direct read-out in bar. The panel also includes a button to zero all the display readings. Each gauge quickly and conveniently connects to pressure outlets. Bleed ports are provided to allow for easy removal of unwanted air.
Features
- Digital pressure display for use with a variety of TecQuipment experiments
- Clear, accurate measurement and display of pressure
- Includes four electronic pressure transducers
- Frame mounting fits on the instrumentation frames of TecQuipment equipment
- Quick, easy and safe connection
- Includes output for connection to TecQuipment’s Versatile Data Acquisition System (VDAS®)
- Robust construction
Specifications
- Four electronic pressure transducers
- Four-line LCD display
- Direct read-out in bar
- Transducers rated to show inlet, delivery, and Venturi (differential) pressure
- Panel mounts on the instrumentation frames of relevant TecQuipment experiments
- Includes output for connection to TecQuipment’s Versatile Data Acquisition System (VDAS®)
- Includes button to zero all display readings
- Bleed ports for removal of unwanted air
Items Included
- Digital pressure display module
- Robust mounting panel
- Four pressure transducers
- Four-line LCD display
