Strain Gauge Trainer
Model Number: SM1009
Bench-mounted system for teaching strain measurement in bending, torsion and tension.
Overview

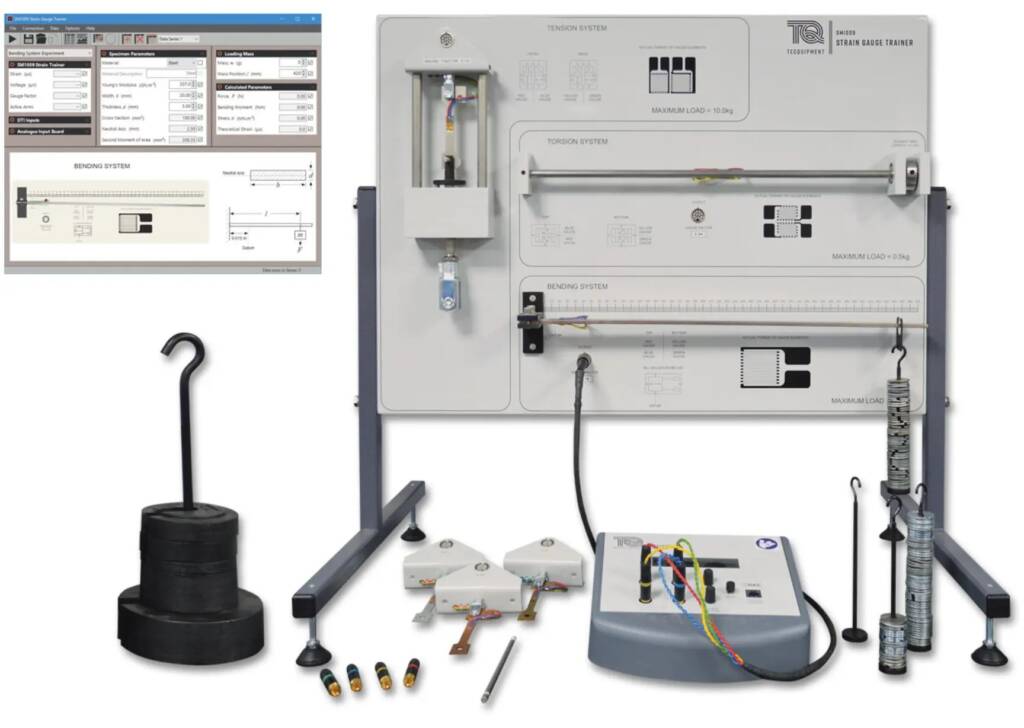

Bench mounted bending system to test tension, torsion and bending to illustrate how resistance strain gauges work and methods of measuring strains in different structures. Can be used to demonstrate Young’s modulus and Poisson’s ratio.
The compact Strain Gauge Trainer fits on a bench or desktop. It contains everything needed to show students how resistance strain gauges work on three different structures. It is ideal for groups of two or more students to do experiments and for classroom demonstrations.
Students use the small set of masses to load the bending and torsion systems, and the large set of masses to load the tension system. They use theory and known dimensions to calculate the stresses and strains and compare them with the strains measured by the strain gauges. Students can also connect and compare the performance of quarter, half and full-bridge strain gauge connections for each structure.
Features
- Compact bench or desktop trainer
- Demonstrates resistance strain gauges on three different structures
- Covers bending, torsion and tension experiments
- Allows comparison of quarter, half and full-bridge connections
- Measures direct tensile, compression and shear/torque strain
- Tension system uses a Tee rosette arrangement
- Supports experiments for Young’s modulus and Poisson’s ratio
- Strain display works with different gauge factors and bridge connections
- Socket for optional VDAS® connection
- Protective coating helps prevent accidental gauge damage
- Enlarged mimic diagrams show gauge appearance, connections and mounting
- Supplied user guide includes theory and experiments
Specifications
- Mounting: Bench mounted; fits on a bench or desktop
- Structures: Bending, torsion and tension
- Bridge connections: Quarter, half and full-bridge
- Strain types demonstrated: Direct tensile, compression and shear/torque strain
- Tension measurement: Two gauges at right angles in a Tee rosette
- Display features: Works with all bridge connections and different gauge factors
- Additional function: Extra display setting for proving Poisson’s ratio
- Data acquisition: Socket for optional Versatile Data Acquisition System (VDAS®)
- Student use: Ideal for groups of two or more students
Learning Outcomes
- Introduction to the equipment and the different bridge connections (quarter, half and full-bridge)
- Strains and stresses in a bending system
- Strains and stresses in a torsion system
- Strains and stresses in a tension system, Poisson’s ratio and Young’s modulus
- Tensile strains and stresses in different materials and comparison of Poisson’s ratio and Young’s modulus
- Comparison of different strain measurement systems and how they could measure force
Items Included
- Bending system
- Torsion system
- Tension system
- Small set of masses for the bending and torsion systems
- Large set of masses for the tension system
- Strain display
- Set of high-accuracy dummy strain gauge resistors (plugs) and controls
- User guide with theory and experiments
Requirements
- Computer required for use with optional VDAS® data acquisition.
