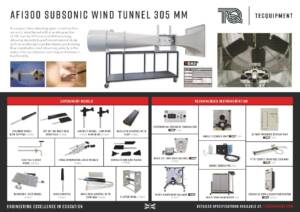

Subsonic Wind Tunnel 305 mm
Model Number: AF1300S
A compact subsonic wind tunnel starter set for hands-on aerodynamics experiments.
Overview
A starter set consisting of the Subsonic Wind Tunnel 305 mm (AF1300), Basic Lift and Drag Balance (AF1300z) and a set of Three-Dimensional Drag Models (AF1300j).
Air enters the tunnel through an aerodynamically designed effuser (cone) that accelerates the air linearly. It then enters the working section and passes through a grill before moving through a diffuser and then to a variable-speed axial fan. The grill protects the fan from damage by loose objects. The air leaves the fan, passes through a silencer unit and then back out to atmosphere.
A separate control and instrumentation unit controls the speed of the axial fan (and the air velocity in the working section). The control and instrumentation unit also includes manometers and electrical outlets to supply electrical power to other optional instruments. A metal frame supports the wind tunnel. The frame includes lockable castors for convenient mobility.
The working section of the tunnel is a square section with a clear roof, sides and floor. The sides are removable. The floor and each side panel has a special position to support the optional wind tunnel models.
Features
- A wind tunnel for conducting experiments in aerodynamics
- Safe, compact, open-circuit suction wind tunnel
- Includes a lift and drag balance with a set of three-dimensional models for experiments in aerodynamic drag
- The balance works with TecQuipment’s Versatile Data Acquisition System (VDAS®)
- Additional models and instruments available to extend the range of experiments
- Wind tunnel controls mount on a separate, free-standing instrument frame for ease of use
- The wind tunnel has wheels for easy mobility
Specifications
- Wind tunnel type: Open-circuit suction wind tunnel
- Size: 305 mm
- Working section: Square section with clear roof, sides and floor
- Side panels: Removable
- Airflow drive: Variable-speed axial fan
- Control system: Separate control and instrumentation unit
- Instrumentation: Manometers and electrical outlets for optional instruments
- Pressure probes: Traversing Pitot-static tube and standard Pitot tube
- Frame: Metal frame with lockable castors
- Noise control: Silencer unit
Learning Outcomes
- Three-dimensional drag due to different body shapes and surface dimples
- Flow past bluff and streamlined bodies with pressure and velocity observations in the wake
- Boundary layer development
- Influence of aspect ratio on aerofoil performance
- Performance of an aerofoil with flap, including the influence of flap angle on lift, drag and stall
- Pressure distribution around a cylinder under sub-critical flow conditions
- Basic measurement of lift and drag forces
- Characteristics of three-dimensional aerofoils, including lift, drag and pitching moment
- Pressure distribution around an aerofoil model to derive lift and compare with direct lift measurements
- Flow visualisation
Add On Products
TecQuipmentAFA1Multi-Tube Manometer (AFA1)
TecQuipmentAF1300TThree Component Balance
TecQuipmentAFA4Balance Angle Feedback Unit
TecQuipmentAFA5Differential Pressure Transducer
TecQuipmentAFA632 Way Pressure Display Unit
TecQuipmentAFA7Pitot Static Traverse (Digital)
TecQuipmentAFA11Smoke Generator
TecQuipmentVDAS-F (mkII)VDAS® mkII (Frame Mounted Version)Items Included
- Subsonic Wind Tunnel 305 mm (AF1300)
- Basic Lift and Drag Balance (AF1300z)
- Three-Dimensional Drag Models (AF1300j)
- Separate control and instrumentation unit
- Metal support frame with lockable castors
- Protractor
- Model holder for angle adjustment
- Traversing Pitot-static tube
- Traversing standard Pitot tube
Requirements
- Some experiments require minimum additional instrumentation.
- Data can be transcribed using TecQuipment electronic instruments such as the 32-Way Pressure Display Unit (AFA6) or manually read instruments such as the Multitube Manometer (AFA1).
