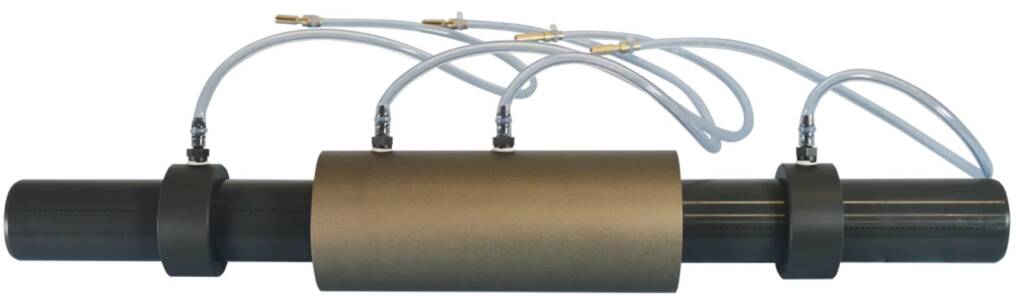

Venturi Flowmeter
Model Number: H40B
ISO standard Venturi flow measurement for use with the TecQuipment H40 Flow Meter Calibration unit.
Overview
A popular flow meter for use with TecQuipment’s Flow Meter Calibration unit (H40). It shows the accuracy and use of a venturi flow meter. This flow meter quickly and easily fits into place between the adaptors in the base unit of the Flow Meter Calibration unit. The manometers of the calibration unit show the pressure differences at the flow meter and across the overall flow meter assembly. A venturi made to ISO (International Standards Organisation) standards allows the user to measure pressures before and after a constriction for a given rate of flow. The venturi shows how standard textbook equations allow you to accurately calculate flow from these pressures, due to the specific design of the venturi.
Features
- ISO standard Venturi with upstream and throat pressure tappings
- Designed for use with TecQuipment’s H40 Flow Meter Calibration unit
- Quickly fits between the adaptors in the H40 base unit
- Measures pressures before and after a constriction for a given flow rate
- Demonstrates accurate flow calculation from pressure measurements using standard textbook equations
- Works with the calibration unit manometers to show pressure differences
Specifications
- Type: Venturi flow meter
- Standard: ISO (International Standards Organisation)
- Pressure tappings: Upstream and throat
- Compatible equipment: TecQuipment H40 Flow Meter Calibration unit
- Mounting: Fits between the adaptors in the base unit of the Flow Meter Calibration unit
- Measurement method: Pressure measurement before and after a constriction for a given rate of flow
Learning Outcomes
- Accuracy of venturi flow meters
- Losses and k value
- Calculation of the coefficient of discharge
Requirements
- TecQuipment H40 Flow Meter Calibration unit
