MakerBot Sketch Standard
Classroom 3D printing that scales from a single printer to a full school program.
Overview
Making 3D printing possible for every student. Test ideas, grow student engagement, and enable design thinking with a platform that grows with you. Tap into the most acclaimed 3D printer platform for education and get tailored resources every step of the way.
Features

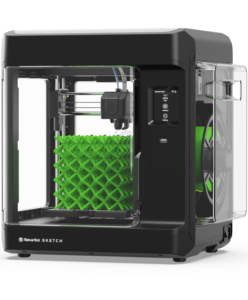

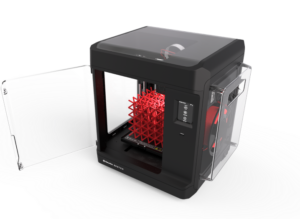

- Enclosed printer with a preinstalled particulate filter
- Flexible heated build plate with removable build surface
- Cloud-based MakerBot CloudPrint with no software installation or student account creation
- Replaceable extruder with a 0.4 mm nozzle

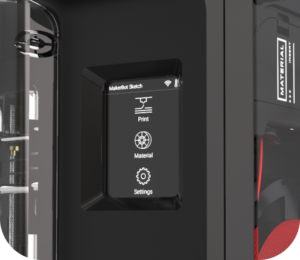

- Full-color touchscreen for starting, monitoring, and pausing prints
- Onboard 2-megapixel camera for remote monitoring
- Optimized for PLA and Tough PLA printing

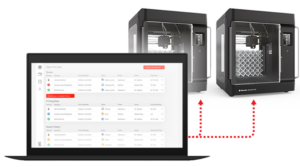

- Student print submission links and fleet management for single printers or a whole fleet
Specifications
| Technology | Fused Deposition Modelling |
|---|---|
| Build Volume | 150mm x 150mm x 150mm (5.9in x 5.9in x 5.9in) |
| Layer Resolution | 100-400 microns (0.0039 – 0.0157 inches); print mode tuned for 200 microns |
| Filament Diameter | 1.75 mm (0.069 inches) |
| Extruder | MakerBot Sketch Extruder with 0.4 mm (0.015 inches) nozzle |
| Operating Temperature | 15-30°C (59-86°F) |
| Storage Temperature | 0-55°C (32-131°F) |
| Dimensions | 433mm x 423mm x 365mm (17in x 16.6in x 14.4in) |
| Weight | 11.8 kg (26 lb) |
| Build Surface | Heated with removable flexible build surface |
| Safety & Compliance | Fully enclosed, particulate filter; UL, CE, FCC; IEC/EN/UL 60950-1 and IEC/EN/UL 62368-1 |
| Software | MakerBot CloudPrint |
| Accepted File Formats | MakerBot (.makerbot), STL (.stl), SolidWorks (.sldprt, .sldasm), Inventor (.ipt, .iam), OBJ, IGES (.iges, .igs), STEP AP203/214 (.step, .stp) |
| Compatible Operating Systems | Windows (7, 10), Mac OS X (10.12+); does not support Mac Catalina |
| Electrical | 100-240 V, 50-60 HZ, 2.7-1.3A |
| Connectivity | USB, Ethernet, Wi-fi |
| Camera | 2 megapixels |
Materials
Compatible materials
- MakerBot Sketch PLA Material
- Tough PLA
Options & Accessories
- Individual printer — 1 Sketch Standard printer, 5 student certification seats, 1 educator certification seat, 3 spools, and 205 inch 3 combined build volume

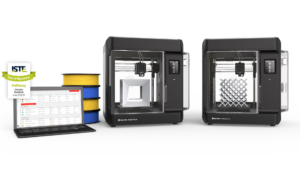

- Classroom setup — 2 Sketch Standard printers, 10 student certification seats, 2 educator certification seats, 6 spools, and 410 inch 3 combined build volume
