CNC Machines

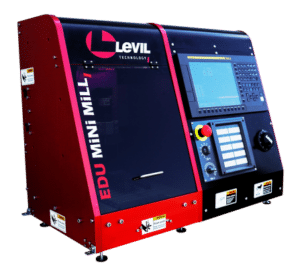

EDU-MiLL
Low-inertia CNC Machine with Metal 3D Printing
The EDUMiLL makes it affordable to include a 3D printer and a robust CNC mill in one package.
Control Options
- Levil
- Fanuc
- Mitsubishi
Features
- Servo control technology for each axis
- Size 15 linear guideways
- C7 ball screws
- Safety door sensor
- Tool length sensor
- High-speed spindle
Characteristics
- Dimensions W 27.5”, D 33.5“, H 41.5”
- Steel enclosure
- Large door for easy access to machining area
- Large side windows to monitor machining processes
- Fits through a standard doorway
- Optional stand with casters for easy relocation
Specifications
- Servo motors: 130W brushless AC type for X, Y, and Z
axis, 6000 rpm - Travel X 7”, Y 10.5”, Z 5”
- Rapid feed 400 ipm
- Accuracy 0.0004”
- Worktable size – 14.5” x 9.8”
LMV-400 CNC
The Preferred Tabletop CNC Milling Machine in EDUCATION
The LMV-400 is ideal for small shops who want to add VMC functionality within a limited space. Its sturdy, robust design consists of a heavy-duty all-aluminum body, precision servo-controlled spindle with a powerful two horsepower motor, and soft start control system. A 110 VAC power connection allows the LMV-400 to be connected to standard electrical outlet.
Control Options
- Levil
- Fanuc
- MachMotion
- Mitsubishi
Features
- Aluminum Body Servo Controlled
- 16.5” X axis travel
- 8.5” Y axis travel
- 7.5” Z axis travel
- Precision 0.0004”
- Rapid Feed (X, Y & Z) 400ipm
- Cutting Feed (X, Y & Z) 118 ipm
- Spindle speed 100 – 14,000 rpm (up to 100K available)
- Spindle 2 hp
- Linear guideways on each axis
- Direct drive on each Axis
- Fits through a standard 35” doorway
- Power 110 VAC 15A
- Dimensions W 33”x
- H 68” x D 37 “ (With machine stand
LTC-30 Series
Compact CNC Turning Machine
The LTC-30 is a robust system designed for the industrial production of small parts. You will not find another lathe at this size that will give you the same rigidity and precision while cutting a wide variety of materials
Control Options
- Fanuc
- MachMotion
Features
- Direct drive on X and Y axis
- Linear guideways on each axis
- Aluminum body
- Granite base
- Servo Controlled
- 8 Gang Style OD Cutting Tools
- 10 position tool rack for milling
- Preloaded Ball Screws
- 8 Gang Style ID Cutting Tools
LMT-300 CNC Mill-Turn
Mystique Compact CNC MiLL-Turn Machine
Merging the best of both worlds, the Mill-Turn combines the functionality of a mill and a lathe. The LMT-300 has the option to operate with different controls. This 5 axes machine is capable of both rotating-workpiece operations (turning) and rotating-tool operations such as milling and cross-drilling. This is a perfect machine for the industrial production of small, complex parts
Control Options
- Levil
- Fanuc
- Machmotion
Features
- Direct drive on X and Z, belt drive on Y axis
- Linear guideways on each axis
- Aluminum body
- Granite base
- Servo controlled
- 4 Gang Style OD Cutting Tools
- 10 position tool rack for milling
- Preloaded
- 4 Gang Style ID Cutting Tool
LMV-300 CNC
The Preferred Tabletop CNC Milling Machine in Industry
The LMV-300 CNC machine dubbed “Quicksilver” delivers high rigidity, high accuracy and high-speed machining for all your cutting needs. The entire machine’s construction stably attaches to a granite bed thus dampening vibrations and making the machine a robust system. The cornerstone of the machine is that it is literally made from stone.
Control Options
- Levil
- Fanuc
- Machmotion
Features
- Aluminum body
- Granite base
- Servo controlled
- Direct drive on all axis
- Linear guideways on each axis
- Preloaded Ball Screws
Specs
- Granite and aluminum body
- Servo controlled
- 14.5” X axis travel
- 9.4” Y axis travel
- 8” Z axis travel
- Precision 0.0004”
- Rapid feed (X, Y & Z) 400 ipm
- Cutting feed (X, Y & Z) 240 ipm
- Spindle speed 100 – 14,000 rpm (up to 100K available)
- Spindle 2 hp
- Power supply 220 VAC 20 A
- Dimensions W 48”x H 72” x D 52 1/2” (with machine stand)
- Linear guideways on each axis
- Direct drive on all axis
LMH-300
Horizontal Mill – Up to 5 Axis
If you require a 24/7 working environment, a tending robot will increase the output of your machine and bring cost savings by reducing down time.
With a high performance industrial-grade robotic arm, you can machine your parts with high accuracy and repeatability.
Features
- Aluminum body
- Granite base
- Servo controlled
- Direct drive on all axis
- Linear guideways on each axis
- Preloaded Ball Screws
Specs
- Travels: X 15.3”, Y 6.5”, Z 9.4”
- Optional B: -95°/+110°, C: +360°/-360°.
- Direct drive on all axes.
- Rugged construction, solid granite base design.
- Standard 14,000 rpm spindle (upgradable to 20,000 rpm).
- Horizontal configuration for efficient chip ejection.
- Power: 220 VAC, 30A, 3ph.
- Tending robot available for 24/7 automated production.
- 27 station tool carrousel.
- CS grade precision ground ballscrews
